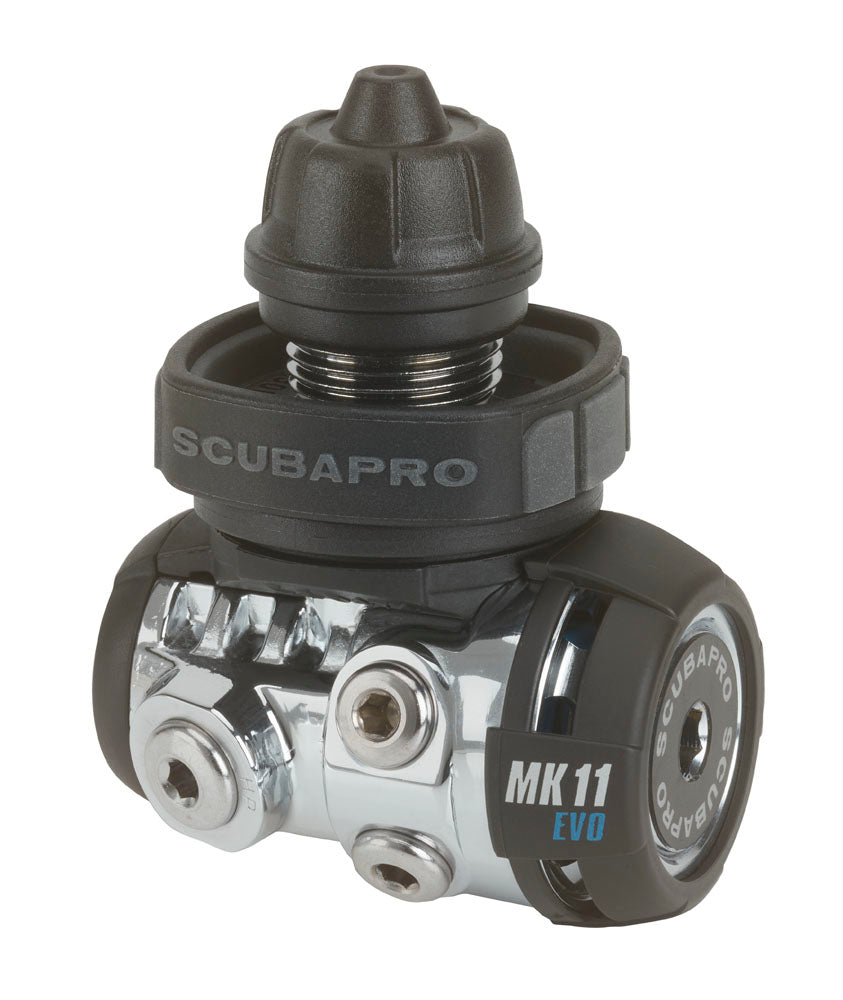

MK11 EVO FIRST STAGE

The SCUBAPRO MK11 EVO is a balanced diaphragm first stage in a forged brass body, more compact than the MK11 it replaces. Metal fins on the body improve thermal exchange, and plastic bumpers protect the finish from the knocks a first stage takes in a kit bag. An innovative double spring layout is what keeps it small without giving up reliability.

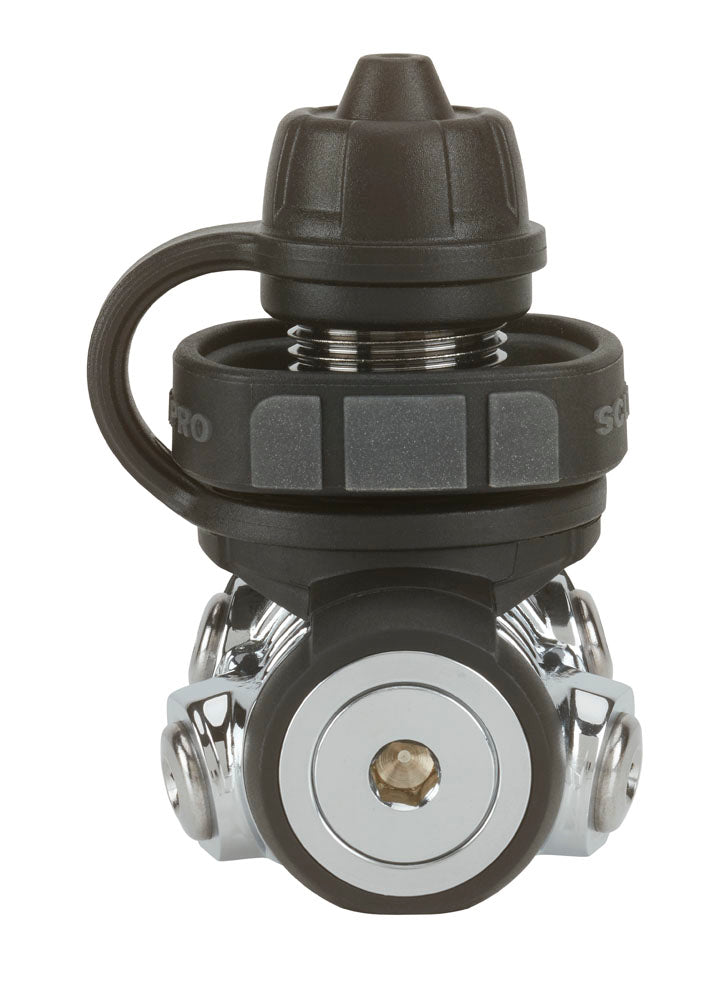

Two high pressure ports sit on a 15-degree angle, which makes high pressure hose routing easier and gives a transmitter somewhere sensible to sit. All four low pressure ports are high-flow, so airflow and hose routing options are both improved over the previous generation. Intermediate pressure is externally adjustable, letting a technician fine-tune the first stage without stripping it. It is CE certified to EN 250A for all diving conditions, including extreme cold water.

Type: air-balanced diaphragm first stage. Body: forged brass with metal thermal fins and plastic bumpers. Ports: 4 high-flow low pressure, 2 high pressure at 15 degrees. Weight: 746 g (25.0 oz) in INT 232. Intermediate pressure: 9.2 to 9.8 bar (133 to 142 psi). Certification: CE EN 250A. Connections: DIN 300 and INT 232. Part numbers 10.011.000 and 10.011.300.
