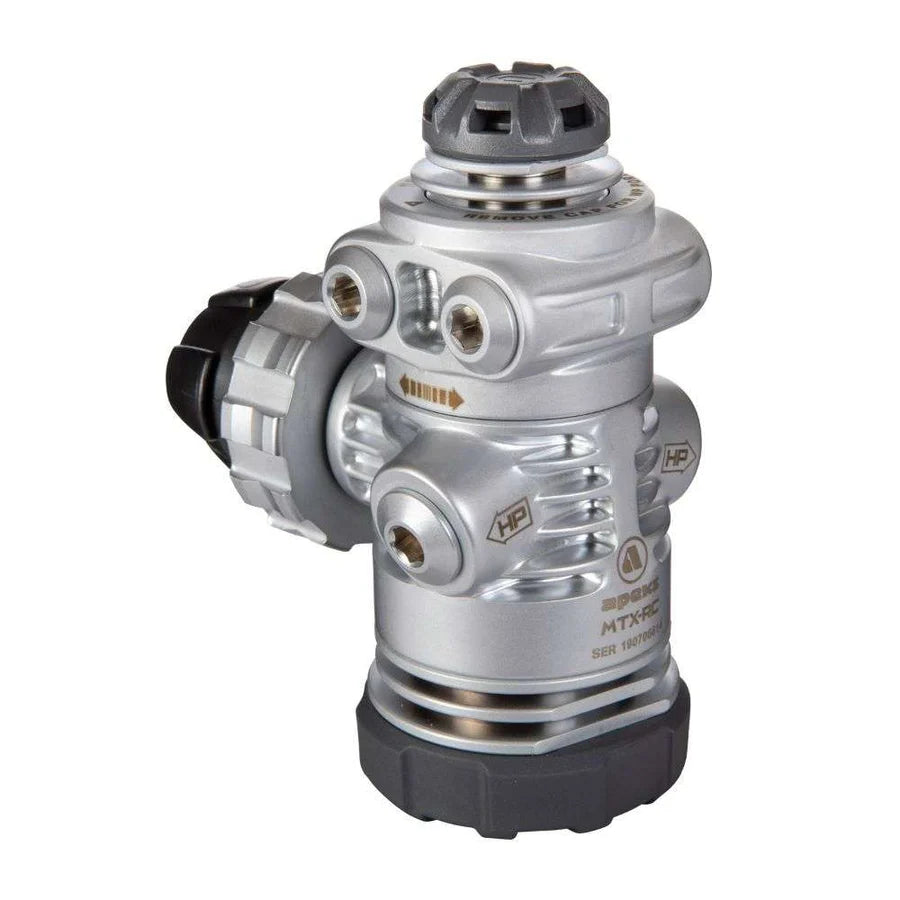

Apeks MTX-RC 1st Stage DIN

Description

A diver rebuilding a rig around second stages they already own needs the first stage on its own, and this is the MTX-RC head without the hoses and second stage. It is the part that does the cold water work. A sealed dry chamber keeps water off the spring and an unfreezable end cap stops ice forming where it would hold the valve open. On a twinset build a second MTX-RC head turns an existing single cylinder set into a manifolded pair. On a stage or deco cylinder it feeds a dedicated regulator without buying a whole new set. On an expedition a spare first stage is the part that keeps a trip alive when one floods. Seven ports on a rotating turret, two high pressure and five medium, route hoses at the angle the rig needs. It suits a technical diver adding cylinders to an existing MTX-RC setup.

Features

• First stage: over balanced diaphragm, environmentally sealed dry chamber
• Body: one piece forged brass with heat exchanging fins
• Turret: rotating turret for hose routing
• Ports: 2 high pressure 7/16 inch UNF, 5 medium pressure 3/8 inch UNF
• Cold water: unfreezable end cap technology and heat exchanger design
• Serviceability: removable first stage valve seat
• Connection: DIN 300 bar
• Design basis: developed to the US Navy Experimental Diving Unit extreme cold water test
• Note: supplied as a first stage only, without a second stage or hoses

What's Included

• MTX-RC first stage, DIN 300 bar
• Dust cap
