Complete Manifold 232 bar

Description

Joining two cylinders into a twinset doubles the gas, but it is the manifold that decides whether a failed o-ring costs one cylinder's gas or both. This Tecline complete manifold pairs two G5/8 DIN valves rated to 232 bar with a central isolator valve, all with Viton seals, M25x2 cylinder threads and black rubber handwheels. With the isolator open both cylinders feed either regulator. With it closed, each side keeps its own gas. The 171 mm spacing suits a pair of 10 or 12 litre steel cylinders for wreck dives off a day boat. The 204 mm spacing suits larger 15 or 18 litre cylinders for long decompression dives in cold inland water. Tecline describe the 171 mm version as oxygen clean as supplied. Cylinder bands and regulators are sold separately, and fitting is work for a qualified cylinder technician. It suits a diver building a backmounted twinset for technical diving.

Features

• Working pressure: 232 bar
• Outlets: two G5/8 DIN
• Isolator: central valve with its own handwheel
• Cylinder threads: M25x2
• Seals: Viton
• Handwheels: three, black rubber

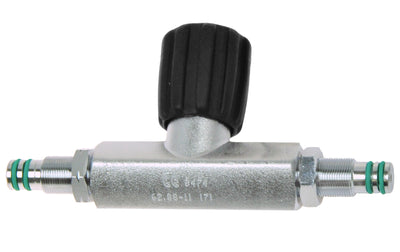

• Spacing: 171 mm or 204 mm between cylinder centres (select)
• Oxygen clean as supplied: stated by Tecline for the 171 mm version
• Bands and regulators: sold separately
• Fitting: work for a qualified cylinder technician

What's Included

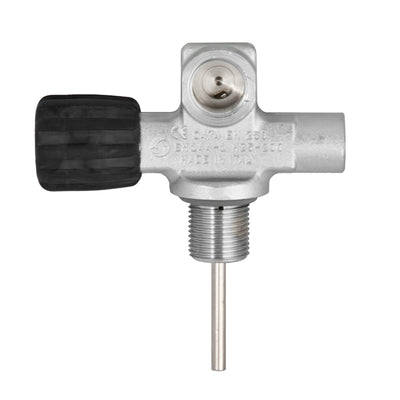

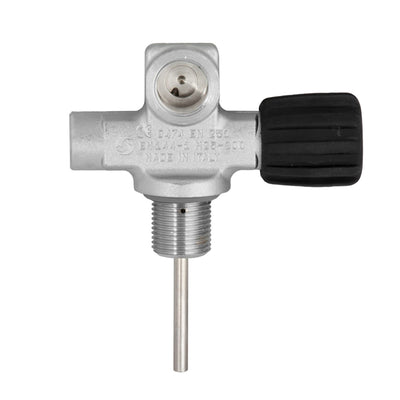

• Left and right manifold valves

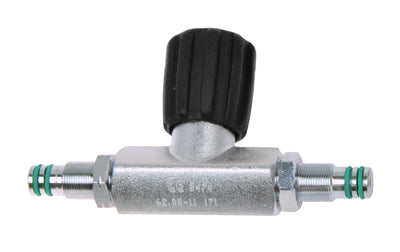

• Central isolator bridge
