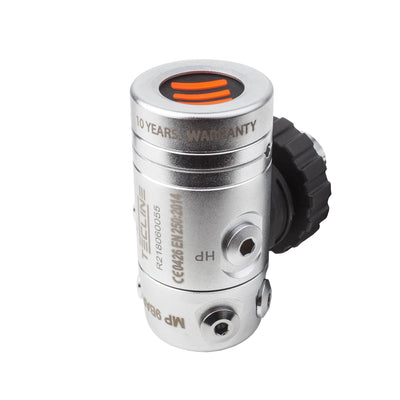

R2 Tec 5 Port First Stage

Description

On a sidemount or drysuit rig the LP ports run out before anything else does: a primary second stage, a backup, a wing inflator and a drysuit hose already fill four. This version of the R2 TEC leaves the factory with a fifth LP port, giving seven outlets with the two HP ports, all on a 360 degree turret so each hose leaves at the angle the rig needs. On a sidemount pair, where Tecline rate it perfect, the spare port keeps the hose layout the same on both cylinders. A drysuit diver in a cold inland quarry can run the suit, the wing and two second stages from one first stage. Tecline also rate it perfect for a stage cylinder and suit it to single tanks and twinsets. The balanced diaphragm runs at 9.0 bar intermediate pressure, with a dry chamber against freezing, in chrome-plated marine bronze weighing 781 g, built to EN 250A for cold water with a DIN 300 bar connection. It suits a sidemount or drysuit diver who needs one more LP port.

Features

• Type: balanced diaphragm first stage
• Ports: 5 LP and 2 HP on a 360 degree rotating turret, fifth LP port factory fitted
• Connection: DIN, 300 bar maximum working pressure
• Intermediate pressure: 9.0 bar
• Freezing protection: dry chamber with cold kit
• Material: marine bronze, chrome plated
• Weight: 781 g
• Standard: EN 250A
• Recommended by Tecline for: sidemount, stage, single tank and twinset
• Second stage and hoses: sold separately

What's Included

• R2 TEC first stage with fifth LP port
