WFH07X Smartphone Housing

Description

A phone's touchscreen stops working once it is wet, so a dive housing has to replace it with buttons and an app. The WFH07X does that with five buttons and a Bluetooth link to WeeFine's free DiveIT app, which handles photos, video, playback, a compass and a dive log, and shows depth and water temperature from sensors built into the housing. Before the dive a built-in electric pump draws a vacuum, charged over USB-C, and the app warns if it detects a leak risk. It fits phones up to 163.5 x 82 x 10.6 mm with a camera bump of up to 7 mm. On a holiday reef dive it turns a phone into a camera rated to 80 m, on a snorkel it records the shallows through the same app, and with a WeeFine video light it fires the light in strobe mode through the optical port. The body weighs 100 g in water. It suits a diver who wants to shoot with the phone already in the pocket.

Features

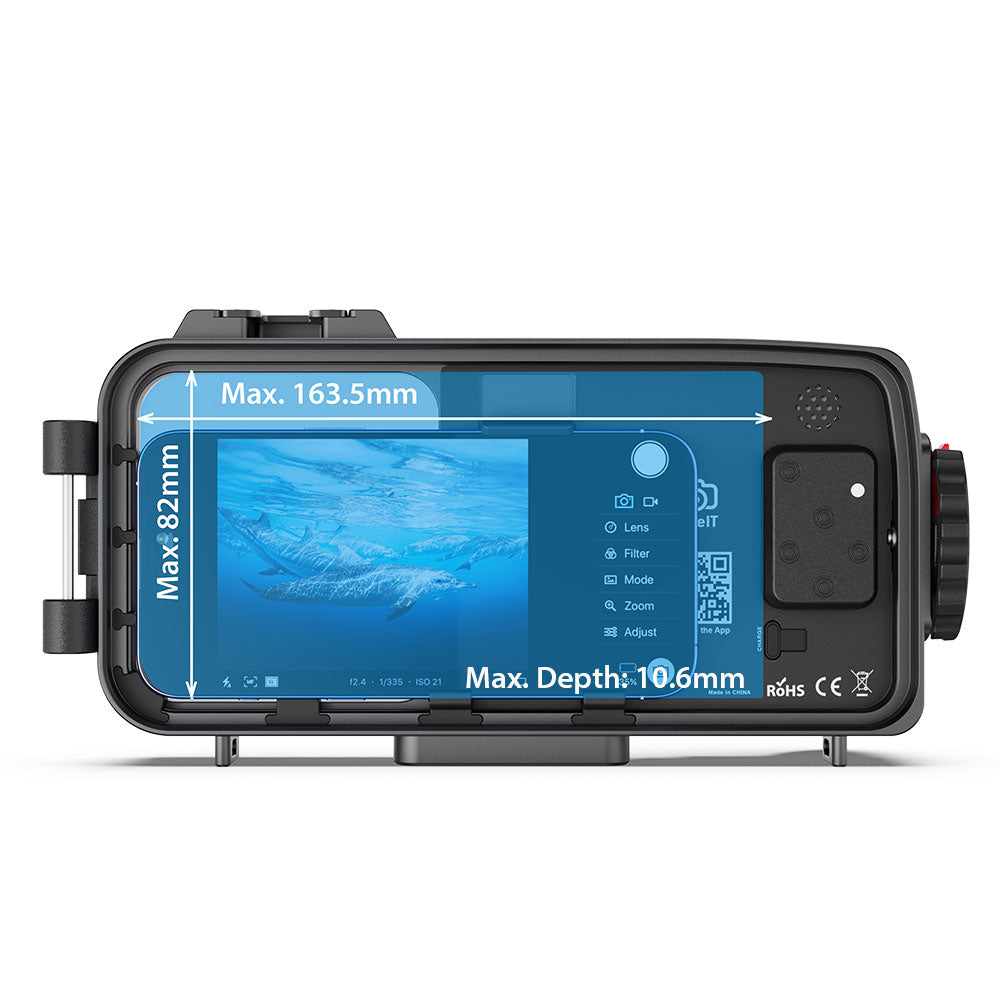

• Phone size: up to 163.5 x 82 x 10.6 mm, camera bump up to 7 mm
• Compatibility examples: iPhone 14, 15 and 16 Pro, Plus and Pro Max; Samsung S22 to S24 including Ultra; Google Pixel 9
• Control: five buttons and a Bluetooth link to the DiveIT app
• App functions: photo, video, playback, compass, dive log, depth and temperature display, leak warning
• Vacuum: built-in electric pump, more than 100 cycles per charge
• Battery: built-in lithium, USB-C charging, over 24 hours running and over 100 days standby
• Strobe: optical port to trigger WeeFine lights in strobe mode
• Accessory mount: shoe connector on top
• Body: Type II anodised aluminium and optical-grade polycarbonate
• Size: 238.5 x 119 x 76 mm
• Weight: 1150 g on land, 100 g in water
• Depth rating: 80 m

What's Included

• WFH07X housing
• Storage bag
• USB-C charging cable
• Extended shutter lever
• Lanyard
• Spare O-rings
• O-ring grease
• O-ring picker
• Glass cleaning cloth
• Hexagon wrench
• User manual and guarantee card
