Divesoft DNA Nitrox Analyser with O2 Sensor

Description

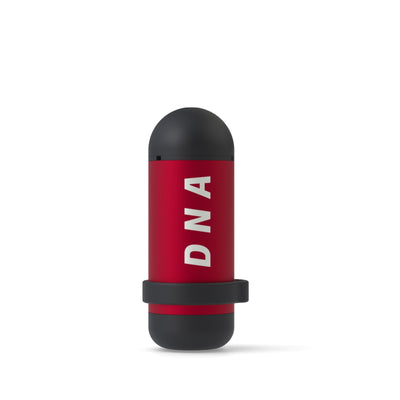

A nitrox check is easier to keep up when the analyser lives in a pocket, and the Divesoft DNA is a 100 g capsule that measures oxygen and sends the reading to the Divesoft app over Bluetooth. There is no screen on the unit; the phone becomes the display, the app works offline, and it calculates maximum operating depth for up to three ppO2 settings before generating a cylinder label. On a boat dive the DNA connects directly to a DIN G5/8 or M26x2 valve outlet, so a quick check needs no hose. When travelling, the anodised aluminium body with TPU end caps rides in a small semi-hard case, and the CR2450 coin cell lasts one to two years before a user swap. This pack includes the R22S oxygen sensor, and the DNA also accepts R22D sensors. For fill stations it works with the Divesoft Professional Flow Limiter or the QD flow limiter and connection hose, sold separately. It suits recreational nitrox divers and travellers who want a pocket-sized analyser of their own.

Features

• Gas measured: oxygen, 0 to 100%
• Display: smartphone running the Divesoft app, connected by Bluetooth
• App functions: MOD for up to three ppO2 settings, cylinder labels, works offline
• Oxygen sensor: Divesoft R22S included, R22D also compatible
• Gas connection: direct to DIN G5/8 (200 and 300 bar) and M26x2 valves, or through Divesoft flow limiters
• Gas flow: 0.2 L/min rated
• Operating pressure: 700 to 1100 mbar (sea level to 3000 m altitude)
• Measuring temperature: 0 to 40 degrees C
• Battery: CR2450 coin cell, user replaceable, 1 to 2 years typical life
• Body: anodised aluminium with protective TPU ends
• Size: 45.6 x 111 x 40 mm
• Weight: 100 g, 126 g with the sensor
• Warranty: 24 months on the analyser, 12 months on the sensor, battery excluded

What's Included

• DNA analyser

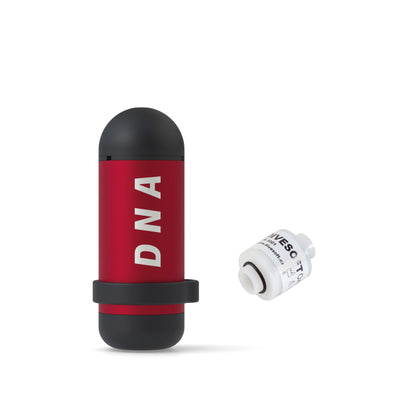

• Divesoft R22S oxygen sensor

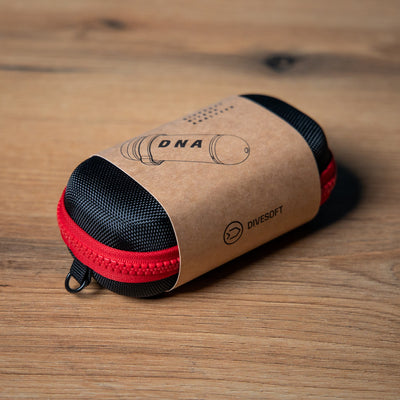

• Semi-hard zipper case, 75 x 150 mm
