Carbon HD HP Hose

Description

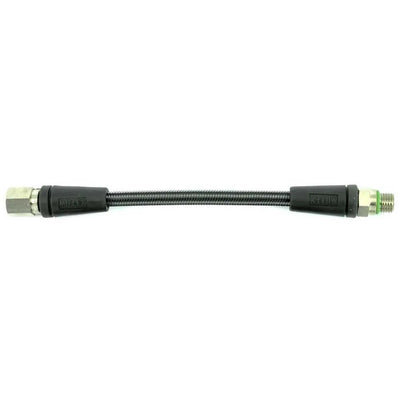

Gauge hoses on a rental rack are dragged over boat benches, stood on in crates and coiled by a different diver every day, and a rubber hose shows that wear first at its fittings. Miflex built the Carbon HD for that workload: a high pressure hose stiffer and tougher than its lighter Xtreme range, yet more flexible than rubber. The hose is under 8 mm across, with a braided nylon outer layer and a strain relief at each fitting. Working pressure is 300 bar, and Miflex quote a burst pressure above 2,000 bar against the 1,250 bar that EN 250 asks for. At a dive centre, the heavier build suits hoses fitted and packed by many hands. On a wreck or cave expedition, it is meant for dives with more contact with steel and rock. On a stage cylinder, the 0.15 m length keeps a small gauge close to the first stage. It suits a dive centre or expedition diver renewing gauge hoses, with fitting left to a technician at no more than 8 Nm.

Features

• Type: high pressure hose for a pressure gauge or console
• Construction: braided nylon outer layer, stiffer than the Miflex Xtreme HP hose and more flexible than rubber
• Outside diameter: under 8 mm
• Working pressure: 300 bar
• Burst pressure: above 2,000 bar, against the EN 250 requirement of 1,250 bar
• Fitting pull-out test: above 250 kg

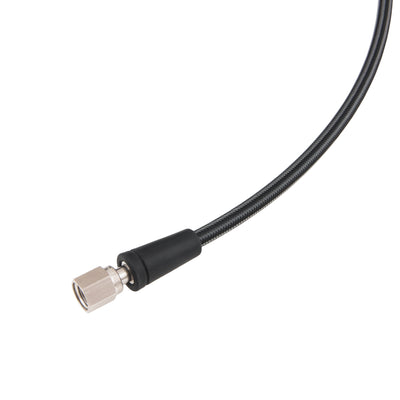

• Fittings: electroless nickel-plated brass with a strain relief at each end
• Connection: standard high pressure threads for a first stage port and a gauge
• Gas: air and nitrox up to 40% oxygen
• Standard: EN 250
• Lengths: 0.15 m to 1.20 m
• Colour: carbon grey
• Fitting: by a qualified technician, maximum tightening torque 8 Nm
• Made in: Italy

What's Included

• One Carbon HD HP hose in the selected length
