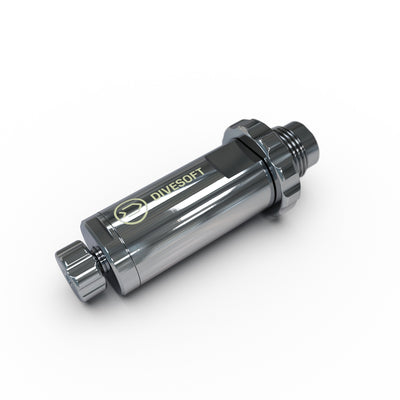

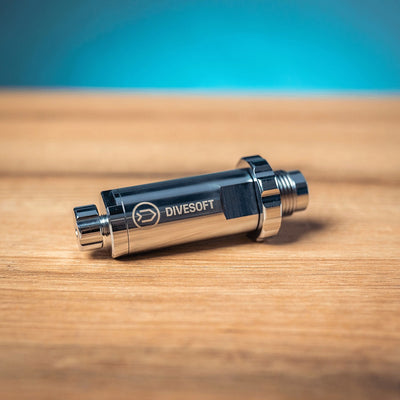

Divesoft Professional Flow Limiter Mk2 DIN G5/8

Description

Analysing the last few bar in a cylinder is where a simple needle valve struggles, and the Divesoft Professional Flow Limiter Mk2 answers it with a built-in regulator that delivers a constant 0.2 litres per minute whatever the cylinder pressure. At a fill station that means the residual gas in a nearly empty cylinder can be measured before topping up, the reading a blender needs to work out the next fill. On a full 300 bar cylinder the flow stays the same, so the analyser sees the same sample rate at the top of the fill as at the bottom. The Mk2 combines the relief valve and the sampling nozzle in one mechanism: closing the nozzle first opens the relief valve and vents the trapped gas, then shuts the device fully. It screws onto a DIN G5/8 valve and links to Divesoft analysers through the connection hose, which is sold separately. It suits blenders, dive centres and technical divers using Divesoft analysers who check gas at every pressure.

Features

• Connection: DIN G5/8
• Flow: constant 0.2 L/min regardless of cylinder pressure
• Maximum working pressure: 300 bar
• Valve design: relief valve and sampling nozzle combined in one mechanism
• Shut-off: closing the nozzle vents remaining gas through the relief valve before closing fully
• Connection hose: not included, sold separately
