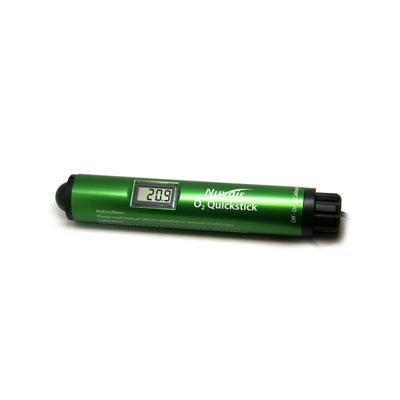

Nuvair O2 Quickstick Nitrox Analyser

Description

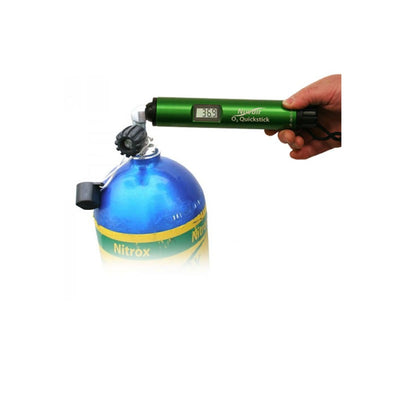

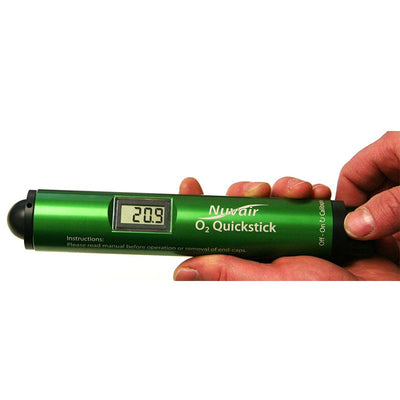

A nitrox analyser that lives in a dive bag has to cope with water and knocks, and the Nuvair O2 Quickstick is a sealed, pocket-sized tube with nothing to connect. There are no hoses, adapters or cables; the domed end cover restricts the flow over the sensor, so the cylinder valve is cracked gently and the reading shows on the built-in display. On a dive boat the magnetic on/off switch is waterproof, so spray and wet hands are no problem, and it saves the 9 V battery between checks. On a liveaboard week the anodised marine-grade aluminium body takes the knocks of a busy kit bench. The thermally compensated electrochemical sensor reads 0 to 100% at 0.1% resolution and reaches 90% of its final value in under six seconds. Both the battery and the sensor are user-replaceable, and Nuvair quotes about 36 months of sensor life in air. A screw-together protective sleeve comes in the box. It suits recreational nitrox divers who want a rugged analyser of their own without a flow kit.

Features

• Range: 0 to 100% oxygen
• Resolution: 0.1%
• Accuracy: within plus or minus 1% of full scale at constant temperature and pressure (maker figure)
• Sensor: electrochemical, thermally compensated, user replaceable, about 36 months expected life in air
• Response: under 6 s to 90% of the final value
• Gas flow: 0.5 to 2 L/min through the domed end cover
• Housing: sealed, water-resistant, anodised marine-grade aluminium
• Switch: magnetic, waterproof on/off
• Power: 9 V alkaline battery, user replaceable
• Size: 23 x 4 cm
• Operating temperature: 0 to 40 degrees C
• Warranty: free replacement up to 12 months, 50% off a replacement at 13 to 18 months, 25% off at 19 to 24 months (Nuvair terms)

What's Included

• O2 Quickstick analyser

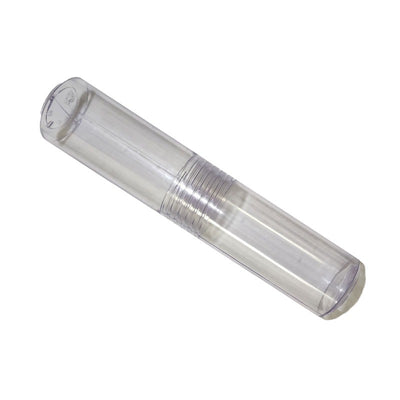

• Screw-together protective sleeve
